The Design Verification (DV) subteam checks that a design behaves according to its specification before it is manufactured. DV members work with RTL designers to identify functionality, write test plans, build simulation environments, find failures, and report enough evidence for a designer to reproduce and fix each bug.

This onboarding introduces that thought process using the CPU from the Digital Design onboarding. You are not being asked to build another CPU or a testbench framework from scratch. The routine class, mailbox, assembly-helper, waveform, and watchdog infrastructure is provided so you can focus on deciding:

what behavior needs to be tested,
how to drive it without creating races,
what must be observed independently,
how to predict the correct result,
how to recognize a failure, and
how to show that the verification plan is complete.

This testbench does not use UVM. Its sequencer, driver, monitor, scoreboard, and coverage components use the same separation of responsibilities found in larger UVM environments.

Tools used

Cadence Xcelium (xrun) for compilation and simulation
Cadence SimVision for waveform debugging
Cadence IMC for RTL code coverage
SystemVerilog classes, mailboxes, constraints, assertions, and coverage reports

Onboarding project

After you add your CPU RTL, the supplied verification scaffold compiles but is intentionally incomplete.

Submit the first version of your test plan during the first week, before implementing its test cases. The plan is a working engineering document: revise it whenever coverage or debugging exposes missing behavior.

The final stage runs the same completed testbench against an encrypted CPU containing multiple injected bugs. Finishing the onboarding means both demonstrating that your own CPU passes and using constrained-random stimulus to find and characterize all three encrypted failures.

Chip-level verification contract

You already learned the CPU datapath and supported instructions during Digital Design onboarding. This section covers the external behavior that this testbench must drive and observe.

External address map

The external port is byte addressed and accepts word-aligned accesses. addr_i[13:12] selects a window:

`addr_i[13:12]`	Window	Base	Size	Access
`2'b00`	Instruction SRAM	`0x0000`	1024 words	read/write
`2'b01`	Data SRAM	`0x1000`	1024 words	read/write
`2'b10`	Register file	`0x2000`	32 words	read only
`2'b11`	Unmapped	—	—	none

Word n is located at base + n*4.

External-port protocol

A write presents addr_i, wdata_i, and w_en_i; the request is captured at the next rising edge.
A read holds addr_i and r_en_i until rready_o is observed. SRAM windows respond on the following cycle; the register-file window responds in the request cycle.
w_en_i and r_en_i must never be asserted together.
The external port is serviced only while the CPU is disabled.
Pulse en_cpu_i for one cycle to start a program at address zero.
cpu_halted_o pulses when ebreak retires. A monitor must sample it every cycle rather than treating it as a persistent status bit.
halt_cpu_i stops execution and returns the memories to the external port. Reset before starting another program.

Running a program

At the chip boundary, a normal test has six phases:

Reset the chip and place all testbench-driven signals at idle values.
Write the program into instruction SRAM through the external port.
Write any initial values into data SRAM.
Pulse en_cpu_i to start execution.
Observe the halt pulse, with a bounded timeout in case the CPU is broken.
Read architectural state through the external port and compare it with an independent prediction.

That sequence is simple, but the timing and ownership changes create most of the verification work. The driver must obey the protocol, the monitor must reconstruct what actually occurred, and the scoreboard must not assume that driver intent became DUT behavior.

Testbench overview

File	Purpose	Your work
`src/verilog/tb/cpu_if.sv`	Groups chip signals and supplies a clocking block that prevents testbench/RTL races.	Provided
`src/verilog/tb/cpu_seq_item.svh`	Represents one randomized instruction and encodes it into a program word.	Complete constraints
`src/verilog/tb/cpu_xbar_item.svh`	Represents external accesses and monitor observations.	Complete constraints
`src/verilog/tb/cpu_sequencer.svh`	Generates programs/accesses and sends them to the driver through a mailbox.	Provided
`src/verilog/tb/cpu_driver.svh`	Converts high-level requests into cycle-accurate chip pin activity.	Complete protocol tasks
`src/verilog/tb/cpu_monitor.svh`	Samples the interface and turns observed behavior into transactions.	Complete delayed-read and CPU-memory reconstruction
`src/verilog/tb/cpu_ref_model.svh`	Executes the supported architecture without modeling pipeline timing.	Provided; may be extended
`src/verilog/tb/cpu_sb.svh`	Maintains independent state and compares DUT observations with predictions.	Complete CPU prediction and checking paths
`src/verilog/tb/cpu_tb_pkg.sv`	Holds shared types, constants, helpers, and class includes.	Provided
`src/verilog/tb/cpu_tb_top.sv`	Instantiates the DUT and components, runs tests, and contains assertions.	Add tests and assertions
`Fall-26-Onboarding-TestPlan-Template.md`	Plan organized like the testbench: functional, chip-level, random, assertion, coverage, and bug-hunt sections.	Copy into initial and final plans
`sim/behav/Include/member.include`	Lists the your CPU and testbench sources compiled by Xcelium.	Update only if filenames differ
`sim/behav/Makefile`	Provides the simulation, waveform, coverage, and bug-hunt commands.	Provided

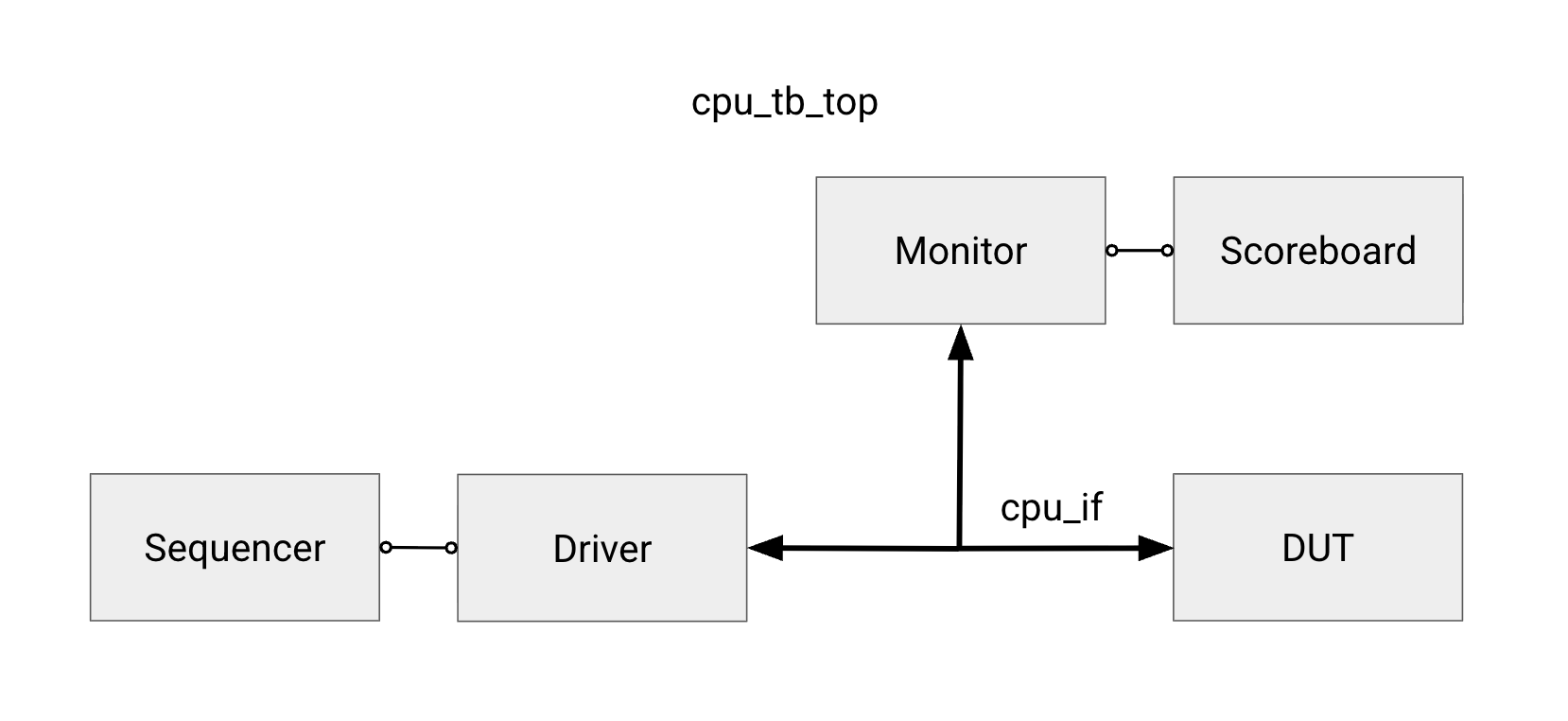

How the components cooperate

The sequencer decides what operation should be attempted. It sends transaction objects through a mailbox to the driver, which is the only class allowed to drive DUT inputs.

The monitor independently samples signals at the chip boundary. It converts observed requests, responses, CPU memory operations, reset, start, and halt into transactions for the scoreboard. The monitor never asks the driver what it intended to do.

The scoreboard keeps shadow copies of instruction and data memory. When it observes a CPU start, it loads those shadows into the supplied reference model. The model predicts architectural state and ordered stores without relying on DUT timing. Later monitor transactions are checked against those predictions.

This separation matters. If the scoreboard used the driver's requested data as proof of what the DUT received, a broken driver or DUT interface could agree with the scoreboard and falsely pass. Good verification needs an independent observation path and an independent source of expected behavior.

Code coverage answers “which DUT implementation structures executed?” It does not prove correctness by itself: tests still need expected-value checks, and uncovered RTL requires investigation.

Project stages

1. Write the first test plan

Copy the Markdown test-plan template to testplan_initial.md and submit it before writing test cases. Keep that reviewed copy unchanged; make testplan_final.md for revisions during implementation and coverage closure. Markdown is used so programs, assertions, commands, and expected values remain readable and copyable. For each planned scenario, identify:

the functionality or requirement,
the stimulus and relevant initial state,
the externally observable expected result,
which component provides that expected result,
the evidence that would distinguish a DUT failure from a testbench failure.

The first-week plan is a preliminary implementation outline. Duplicate the detailed test record and add table rows as needed. In the final revision, record what changed after simulation. Do not silently rewrite the original reasoning when results contradict it; the revision history is part of the DV work.

Do not make a checklist containing only one friendly example per operation. Think about value classes, limits, state transitions, dependencies between adjacent operations, ownership changes, and interactions between otherwise-correct features. The point is to explain why the selected tests demonstrate the specified behavior, not to guess the golden test list.

2. Set up the environment

Sign the Cadence EULA, selecting research under advisor Visvesh Sathe and project SiliconJackets.
Connect to ece-rschsrv.ece.gatech.edu using FastX, MobaXterm, or another X-capable client.
Run tcsh to enter the C shell.
Run source /tools/software/cadence/setup.csh to load the Cadence tools. You may add the setup command to ~/.my-cshrc so it runs when you start tcsh.
Clone this repository and enter sim/behav.

Useful commands:

make help        # list the supported targets
make xrun        # compile and run your CPU with the repeatable default seed
make simvision   # open your CPU waveform
make coverage    # open your coverage database in IMC

make xrun reads member.include, creates symbolic links under WORKSPACE, compiles with Xcelium, and runs cpu_tb_top. The first run will stop at the earliest unfinished TODO. That is an onboarding checkpoint, not a syntax failure.

3. Add your CPU RTL

Copy only your SystemVerilog CPU RTL into src/verilog/cpu/. Do not copy the previous project's Makefile, memory-image flow, tests, or simulation scripts. The supplied chip_top expects the existing cpu_top interface. If your implementation uses additional or differently named RTL files, update the CPU section of sim/behav/Include/member.include.

Do not modify chip_top.sv, memory_controller.sv, sram_wrapper.sv, or the SRAM macro as part of the normal onboarding solution.

4. Complete protocol, monitoring, and checking

Complete and debug one component milestone at a time:

Milestone	What is already supplied
Driver	Mailbox dispatch, limits, and recovery bookkeeping
Monitor	Reset/start/halt recognition, protocol checks, and external writes
Scoreboard	Reset, shadow writes, and a complete external-read comparison
Constraints	A mix of complete examples
Tests	Test lifecycle, smoke test, halt-path smoke, and helpers
Assertions	One complete assertion and shared failure accounting

Each TODO states an observable contract without prescribing the golden implementation. Before writing code:

Find the relevant signals in cpu_if.sv and the protocol requirement in this README.
Decide which clocking event owns each drive or sample.
Identify state that must survive between cycles and state that reset must clear.
Decide how the component will fail if the DUT does not respond.
Run the smallest available scenario and inspect both the log and waveform.

Start with the driver, then the monitor, then the scoreboard. Re-run after each milestone. A simulation may reach several kinds of event in one scenario, so the next failure is evidence about the next missing runtime path—not necessarily the next numeric TODO. The supplied handlers are working examples of component responsibilities, not proof that the remaining behavior is correct.

A useful mismatch reports the active test, operation, location, expected value, and actual value. Every wait for a DUT response must be bounded. A program timeout must record a failure, reset the environment, and avoid readback that would create misleading secondary errors.

5. Add directed tests and assertions

Translate the approved test plan into small, named scenarios in cpu_tb_top.sv. Use the supplied assembly and run_directed helpers instead of rebuilding program-loading boilerplate. Prefer a test whose failure points to one behavior over a long program that can fail for many unrelated reasons.

Add directed, random, and external-port scenarios to the supplied top-level initial block using the existing helpers. Do not add separate top-level initial blocks for ordinary tests so reset, ordering, final reporting, and the encrypted rerun remain consistent.

Assertions check temporal protocol rules on every cycle, independent of the active program. For each assertion, decide:

the sampling clock and reset behavior,
whether the consequence begins immediately or on a later cycle,
whether a response must occur within a bounded window, and
how its failure contributes to the final result.

The supplied simultaneous-read/write assertion demonstrates the reporting path. Temporarily create a violation for every assertion you add and retain log or waveform evidence that it fires. Revert the deliberate violation afterward. Add at least two assertions of your own.

Complete instruction constraints in cpu_seq_item.svh and external-port constraints in cpu_xbar_item.svh as part of the constrained-random phase described next.

6. Add constrained-random testing

SystemVerilog constrained random verification generates varied inputs while excluding illegal or unproductive combinations. The constraint exercises intentionally use three levels:

Provided examples: c_opcode, c_reg_bias, c_imm_unused, c_no_branch_at_end, c_align, and c_reg_read_only demonstrate membership, weighted distribution, implication, and bit constraints. Read them and explain what each one accomplishes.
Partial constraints: c_imm_range, c_branch_target, and c_valid_window contain a legal starting condition. Complete the missing part using the nearby contract.
Open constraints: design c_mem_align, c_branch_taken_bias, and c_data_corners from the required behavior.

For each constraint you complete, document the invalid state it removes, the useful distribution or dependency it encourages, and any legal behavior it makes unreachable.

Random stimulus is valuable only when it is reproducible and checked. Generated instructions are printed by default. The Makefile also controls Xcelium's seed:

make xrun SEED=1         # repeat a known run
make xrun SEED=random    # ask Xcelium to choose a new seed

For a random run, record the numeric SVSEED printed by Xcelium and rerun with that number. Reset between random programs, label each iteration, and ensure the monitor/scoreboard path checks every relevant result. A seed without the generated program and failing iteration is weak evidence.

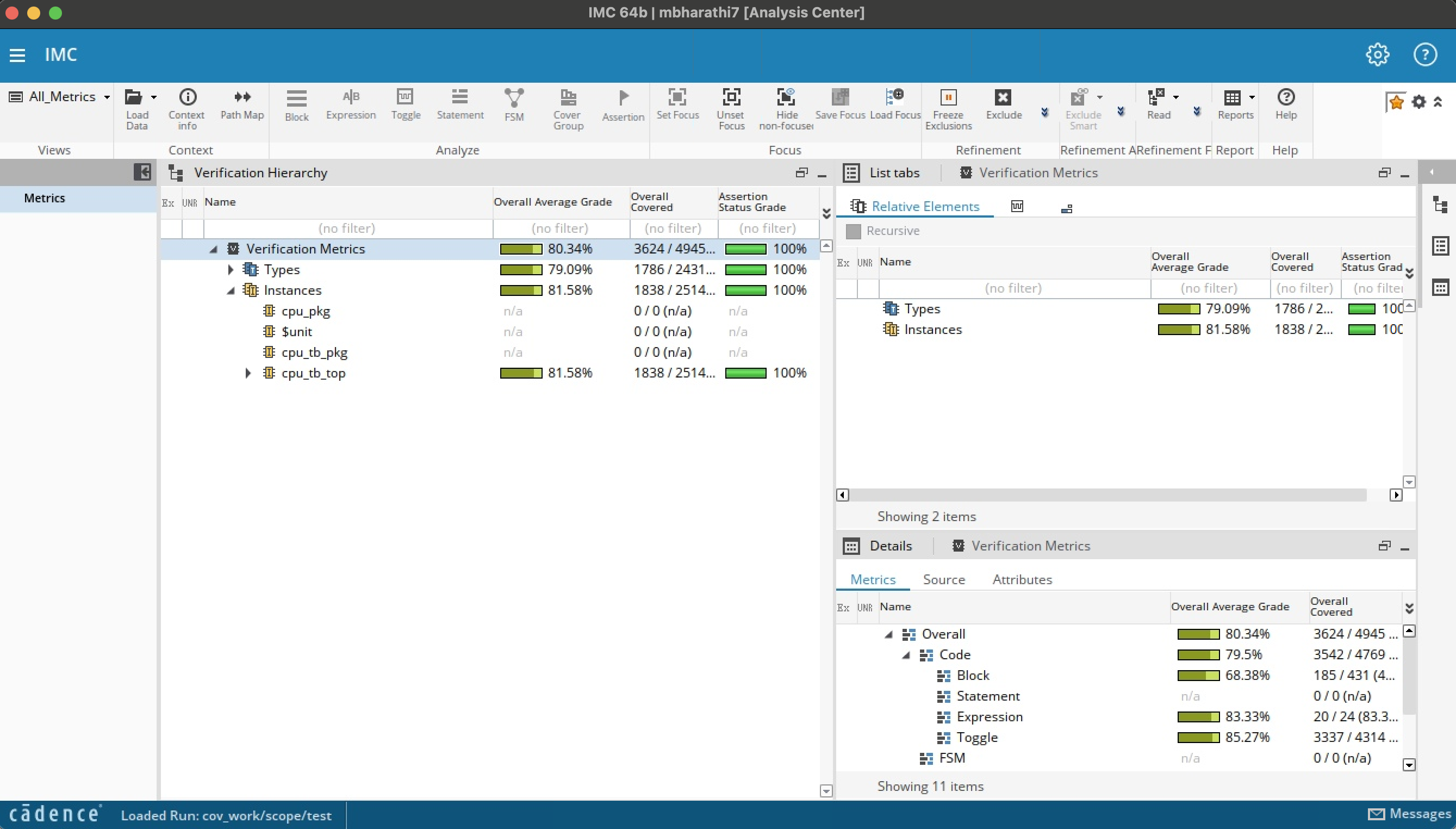

7. Report DUT code coverage and revise the plan

Run the complete member suite, then inspect coverage:

make xrun
make coverage

Completion requires:

at least 98% code coverage under cpu_tb_top.dut,
a revised test plan containing tests added during coverage closure.

Coverage is a question generator. An uncovered item may reveal missing stimulus, an impossible scenario, a monitor sampling error, or a mistaken plan. Investigate which one applies before adding another test or excluding the item.

8. Characterize the encrypted CPU

After your own CPU passes, run the same completed testbench against the provided encrypted CPU:

make bug_hunt     # compile the encrypted CPU and run the complete suite
make bug_hunt_simvision  # open the encrypted-CPU waveform

The encrypted CPU contains three injected bugs, and you are required to find and characterize all three. This stage demonstrates why constrained-random testing is useful: a varied but legal stream can expose an interaction that a short directed checklist missed. Your bugs must first be observed in your constrained-random phase, not chosen from a disclosed trigger or written as a directed test in advance.

make bug_hunt SEED=random   # explore; record Xcelium's numeric SVSEED
make bug_hunt SEED=12345    # reproduce an interesting run

make bug_hunt deterministically assigns one of three encrypted CPUs from the local Unix username and prints the selected variant before compiling. The same username receives the same variant on every run, while the three variants distribute different additional corner cases across the cohort.

Run multiple seeds, retain the first reproducible failure, and then reduce it into a focused reproducer. make bug_hunt disables stop-on-first-scoreboard-error so the run can collect useful evidence. It writes bug_hunt.log and bug_hunt_waves.shm, leaving the member run's simulation.log and waves.shm intact. Do not modify, replace, decrypt, or attempt to recover the protected RTL.

For each selected bug, record the minimum failing program that would reproduce the error. For each bug, submit:

A description of the bug, with the expected and actual behavior of the CPU.
Waveform evidence at readable chip-level signals.
The minimum failing program that triggers the bug and experiments used to separate the trigger from nearby possibilities.

Deliverables

You may submit online as one archive or complete an in-person checkoff at a work session. Include:

testplan_initial.md and testplan_final.md; a rendered PDF of each is optional.

testplan_initial.md is due Sunday, September 27 at 11:59pm, no exceptions.
You will submit testplan_final.md, with any revisions, on Sunday, October 4 at 11:59pm, no exceptions.

The completed driver, monitor, scoreboard, sequence items, and top-level testbench (tb folder).
simulation.log showing your CPU suite passing.
An IMC screenshot showing at least 98% DUT code coverage.
Evidence that each added assertion detects its intended violation.
Encrypted-CPU bug report first found through constrained random, with its numeric seed, failing iteration, minimized program, and waveform evidence for all three bugs.

Deliverables #2-8 are due Sunday, October 4 at 11:59pm, no exceptions.

For online submissions, send the archive to the Discord account sjcheckoffs (SiliconJackets Checkoffs). In-person checkoffs at work sessions are preferred.

Build the submission archive

Run the complete member suite, your automatically assigned encrypted-CPU suite, and coverage export before packaging (make sure you have everything):

make submission

(need to cd back into the root directory).

Submission disclaimer

Submissions after 11:59 p.m. on the announced deadline will not be accepted.
Verify the archive before the deadline; corrected late submissions are not accepted.
You may collaborate on concepts and debugging methods, but you may not share code or bug triggers.
Using AI to understand language or verification concepts is acceptable. Submitting generated code or a generated bug report that you cannot justify from your own plan, logs, and waveforms is not.
Do not share ECE server access. Request and test access early.
