Build a small RV32I-style processor around the provided top level, SRAMs, and testbench. The goal is to get a working single-core CPU that can fetch instructions from instruction SRAM, execute them, read/write data SRAM, and halt cleanly when it reaches ebreak.

Some parts of this processor have been implemented for you as a starting point.

This project is intentionally open-ended on microarchitecture, but the baseline design should be at least 2 cycles because the SRAM read interface takes more than one cycle. Pipelining is allowed, but is not required.

Assignment

Implement the CPU in src/verilog/cpu/. Your design should connect through the existing cpu_top.sv interface and use the provided memory/controller structure in src/verilog/.

Requirements:

addi with a positive immediate: add immediate
addi with a negative immediate: subtract immediate
add: register-register add
sub: register-register subtract
lw: load word from data SRAM using an immediate offset
sw: store word to data SRAM using an immediate offset
beq against x0: branch if zero
sll: left logical shift
srl: right logical shift
ebreak: halt the CPU
Register x0 must stay zero, and data memory word data[0] should remain 0x00000000

Provided Files

src/verilog/chip_top.sv: instantiates the CPU, SRAMs, and memory controller
src/verilog/memory_controller.sv: arbitrates between external testbench access and CPU access to SRAM/register state
src/verilog/sram_wrapper.sv: wraps the provided SRAM macro
src/verilog/CF_SRAM_1024x32.tt_180V_25C.v: provided 1024x32 SRAM macro
src/verilog/tb_processor.svp: main processor testbench
src/verilog/cpu/cpu_top.sv: CPU integration point
src/verilog/cpu/fetch.sv: instruction fetch scaffold
src/verilog/cpu/reg_file.sv: register file wrapper

Getting Started

Sign the EULA agreement for Cadence tools (https://eulas.ece.gatech.edu/Cadence/)
- Under Primary GT Affiliation -> Select "Researcher or Staff"
- Your Title: "Student"
- ECE Faculty Advisor / Professor Name : "Visvesh S Sathe"
- ECE Faculty Advisor / Professor Email: "[email protected]"
- Software needed for -> "Research"
- Research Project Name : "SiliconJackets"
- Agree to Cadence agreement
Download Georgia Tech VPN (https://vpn.gatech.edu/global-protect/getsoftwarepage.esp)
Log into the GlobalProtect VPN once downloaded(portal: vpn.gatech.edu)
- use your school username and password
- 'push1' sends a push to DUO, 'phone1' gives you an automated phone call
Download FastX or MobaXterm (or your preferred remote Terminal Emulator)
- FastX (https://www.starnet.com/download-fastx-client/)
- MobaXterm (https://mobaxterm.mobatek.net/download-home-edition.html)
Log in remotely to ECE Research server
- The setup will be similar but different depending on the terminal emulator you choose
- The following instructions work for FastX, but ask if you need help setting up with MobaXterm
- Ensure you are connected to GT VPN
- Open FastX Client

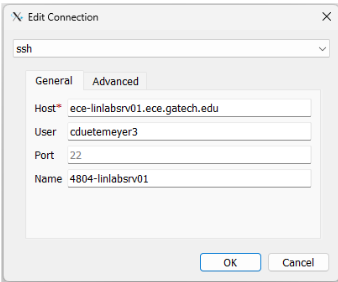

- File->Connections. Click the plus sign to add a connection.
- Host: ece-rschsrv.ece.gatech.edu
- Username: <your_GT_username>
- Port: 22
- Name: Whatever you want to call the connection
- Here is an example of what your screen should look like:
- Connect to the session and type in your GT password at the prompt

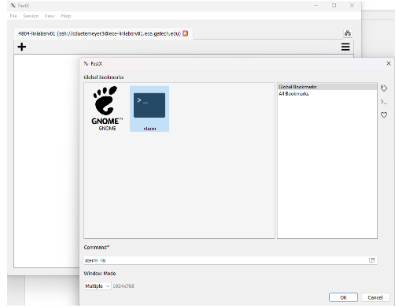

- Click the plus sign and then "xterm"

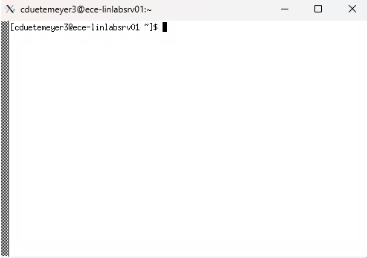

- You should now be remotely connected to the Research server Linux terminal
run the tcsh command to switch to c-shell. This command needs to be run every time you log into the server. (You should see a '>' and NOT a '$')
IMPORTANT: Add the following line to your ~/.my-cshrc file: 'source /tools/software/cadence/setup.csh'. This will allow you to run the commands for cadence tools if you have gotten your EULA approved. (your ~/.my-cshrc file might be empty up until now, so just make this the first line). This is how you can do this: return to your home directory by running "cd ~". Then, do "nano ~/.my-cshrc" to enter the config file. Copy the line provided into it, then hit ctrl + the letter "o", then hit enter to save. Then hit ctrl + x to quit. To apply the changes, type "source ~/.my-cshrc". Now, typing xrun should not show an error.
Clone this repo into the linux server. This is done using git clone url <--replace url with github-provided url. You might be prompted to input your username and password for git.
At this point, you can write your code in the files within the src/verilog/cpu folder.
Get comfortable with some linux commands, you probably only need mkdir, ls, cd.
Run the command "make smoke" from the repository root. If you error, you did something wrong.
cd into sim/behav, then run the command "make simvision".
Once the GUI has popped up, you should be able to drag the module into variable section, whereby the signals will appear on the right.

Writing Verilog

Need Verilog practice? We reccomend doing practice problems at HDLBits, it starts from foundational logic and shows basic waveforms.

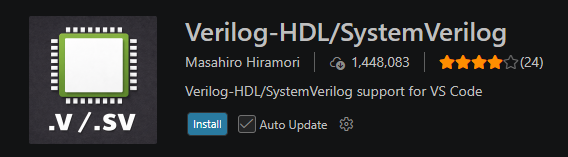

Install the Verilog vscode extension to get better syntax.

When adding new files to the folder, you must add them to sim/behav/Include/cpu.include. Just follow the pattern of the other file paths linked there.

Running Existing Tests

From the repository root, list the available test commands:

make help

Run one RTL test:

make test TEST=add

Run every test, including any you've added yourself:

make regress

Clean generated files:

make clean

Useful variables:

TEST=<name> chooses a directory under tests/
MAX_CPU_CYCLES=<n> changes how long the testbench waits for halt
CROSSBAR_TIMEOUT=<n> changes how long external SRAM/register accesses wait

Example:

make test TEST=complex2 MAX_CPU_CYCLES=2000

Adding A New Test

To add a new test, create a directory under tests/ with the name of your test:

mkdir tests/my_test

Add the assembly program here:

tests/my_test/program.asm

The file must be named program.asm. For example:

_start:
    addi x1, x0, 5
    addi x2, x1, -2
    ebreak

Add the initial dSRAM contents here:

tests/my_test/data.hex

The file must be named data.hex. It contains one 32-bit hex word per line, addressed sequentially:

Line 1 -> 0x000
Line 2 -> 0x004
Line 3 -> 0x008

For example, this initializes data[0], data[1], and data[2]:

00000000
0000002a
000000ff

From the repository root, generate the machine code and expected outputs:

make generate TEST=my_test

my_test is the name of the directory under tests/. This command creates program.hex, expected_regs.hex, and expected_data.hex.

Then run the testbench with that program and those expected outputs:

make test TEST=my_test

To run every test directory under tests/:

make regress

Writing Your Own Testbench

The tests above all drive tb_processor, the whole CPU. To exercise one module on its own, write your own testbench. src/verilog/tb_fetch.sv and sim/behav/Include/fetch.include are in this repository as an example to copy.

Run one from sim/behav/:

make run_and_view INCLUDE_FILE_NAME=fetch.include TOP=tb_fetch

TOP must be the module name of the testbench itself. If you add a testbench to an include file but leave TOP at its default, the other testbench runs and yours never does.

Provided Tests

make regress runs every test directory under tests/, including any tests you add yourself.

Most provided tests are opcode-specific: addi, add, sub, lw, sw, sll, srl, branch_taken, branch_not_taken, and ebreak. complex1 and complex2 are larger programs that interleave several instructions together (loops, data-dependent branches, computed addresses) to exercise combinations the single-opcode tests can't.

You can add more tests, but do not modify the provided tests.

Each test directory contains:

program.asm: source assembly
data.hex: initial dSRAM contents
expected_regs.hex: expected final register file
expected_data.hex: expected final dSRAM contents

Generated files such as program.o and program.hex are created by make generate/make test and can be removed with make clean-generated.

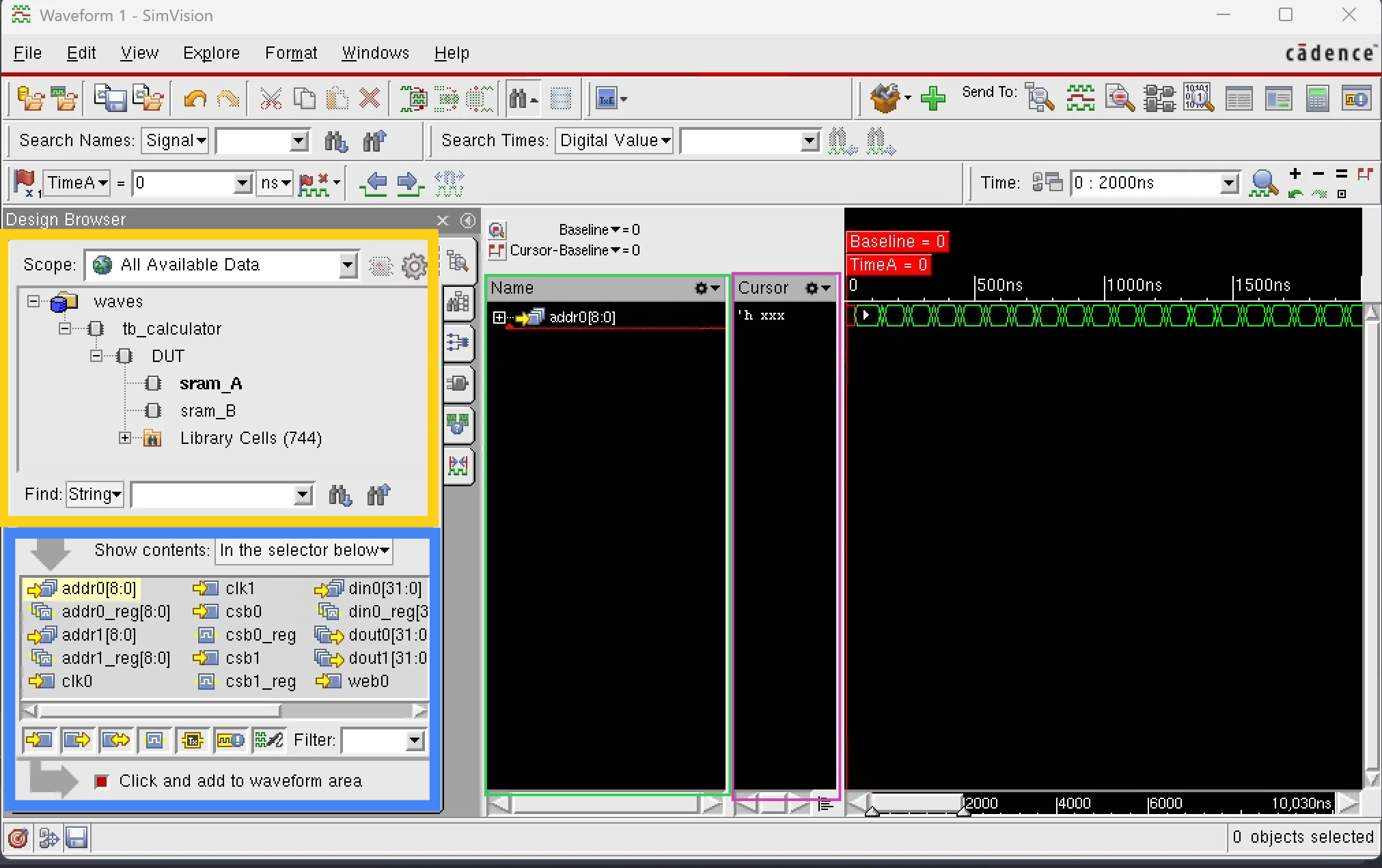

Tips for Waveform viewers

Navigate hierarchy by clicking on the + sign next to module names (Yellow Box)
Add Signal by clicking on a module, then clicking on the signal in the signal panel (Blue Box)
Use the seek bar at the bottom of the waveform viewer to navigate through time and zoom.
Right-click a signal to "Set Radix" (e.g., binary, hex, decimal)
Right click on the signal window and use Save/Load to save a waveform setup so you don't have to re-add signals every time
1. When saving, put the file outside of the WORKSPACE directory to avoid overwriting during make clean

Submission Expectations

TBD, will be announced later soon

If you have any questions, send a message in the onboarding-help discussion channel on the Discord server or reach out to a Digital Design team lead:

Name	Discord	Email
Konstantin Gaydev	koki16	[email protected]
Alfi Antony	xjfg	[email protected]
Wade Tran	justbasics	[email protected]
Gabriel Nech	gabrielnech	[email protected]
Padraig Littlefield	padgaig	[email protected]

Onboarding Policy:

Submissions must be made individually. Your work should not be copied from others. Collboration is allowed but submissions too similar will not be checked off.
AI is NOT allowed for writing verilog. Use it exclusively for learning and you must show adequate understanding of the code you submit. We may ask you to explain any part of your code as a follow-up to your submission.
Use your own account and linux credentials for submission. Do not run your code on someone else's crediantials. This is against GT policy and ECE IT rules.
There is strictly NO extensions for onboarding deadlines. We do not have enough leads to accomodate extensions.
Non-working submissions will not be checked off. Make sure your code runs and passes all checks before submission. We will provide feedbacks on all submissions but we do not guarantee timely feedback unless you submit at least 24 hours before the deadline.
